Product Description

Bradford Fibermesh 650 is a general purpose industrial insulation for use on process equipment, vessels, tanks and reactors.

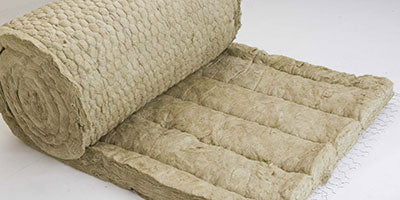

Bradford Fibermesh 650 rockwool is a robust high density insulation product stitched on one side with a galvanised or stainless steel wire mesh. The rockwool blanket is manufactured by spinning a molten mixture of natural rock and recycled products into fine wool like fibres which are bonded together using a thermosetting resin. The mesh is then stitched to the base blanket to form the final product. The product can be identified by its dark green/brown appearance.

Features and Benefits

  • Highly durable insulation product
  • Facilitates forming and holds shape of equipment to be insulated
  • Does not need other means of fixings (bands, seals)
  • Able to be used at higher temperatures
  • Cost effective thermal insulation
  • Performance is not adversely effected from contact with water
  • Non-combustible insulation fibres and non-combustible galvanised or stainless steel mesh
  • Biosoluble safe to use product
  • Made from up to 40% recycled content

Applications

Fibermesh 650 is ideal for use in process temperature control, energy conservation, condensation prevention, acoustic absorption treatment and personnel protection from plant and equipment. The Mesh facing provides additional strength and flexibility allowing the product to form and hold form around process equipment, ductwork and large diameter piping.

Typical applications include:

  • boilers
  • heat exchangers
  • reactors
  • ovens
  • kilns
  • autoclaves
  • large diameter piping

Bradford Fibermesh 650 is easily installed by impaling the batts or blankets on weld pins and securing with speed clips. The mesh joins may be laced together for extra strength if required.

Specifications

Blanket

Thickness
(mm)
Length
(mm)
Width
(mm)
Pieces per
pack
Nominal m2
per pack
25 5000 600 1 3.0
50 5000 600 1 3.0
75 3000 600 1 1.8
100 2000 600 1 1.2
